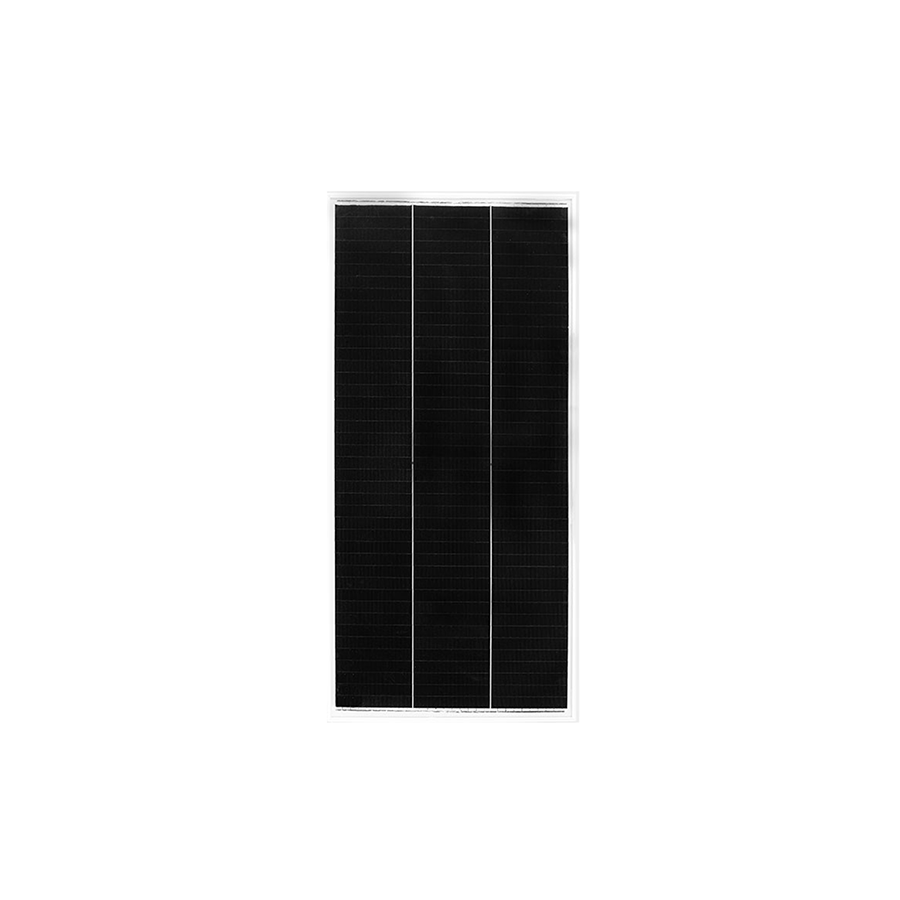

100W Glass Solar Panel

    Products Features:Harmony Fab not only adopts the highest quality standards to produce panels, but is also at the forefront of proprietary research and development innovation in the industry.
  • Product info

Harmony Fab not only adopts the highest quality standards to produce panels, but is also at the forefront of proprietary research and development innovation in the industry.

Harmony Fab 100W glass solar panel supports a wide range of installation options, including flat, pole, and wall mounting.

Common applications include RVs, campers, SUVs, marine use, residential rooftops,traffic signs, and so on.


ELECTRICAL CHARACTERISTICS

STC

HMN-100-GBA

Maximum Power (Pmax)

100W

Maximum Power Voltage(Vmp)

18.4V

Maximum Power Current(Imp)

5.51A

Open-circuit Voltage(Voc)

22.3V

Short-circuit Current(Isc)

5.88A

Module Efficiency(%)

18.40%

Operating Temperature

-40 ℃ to 85 ℃

Maximum System Voltage

600VDC

Maximum Series Fuse Rating

15A

Applic ation Class

Class A

P ower Toleran ce

0~+5 W

STC:Irradiance 1000W/m² , module temperature 25℃ , AM=1.5


MECHANICAL CHARACTERISTICS

Solar Cell

Monocrystalline sillicon cell

No. of cells

102

Module Dimensions

L:1066*W:510*H:35 mm

Weight

8.3 kg

FrontGlass

3.2 mm tempered AR Glass

Backsheet

White PV Backsheet

Frame

35 mm A lum inum Frame

J-Box

IP 67 rated

Output cables

4mm²

Cable length

(+)/(-) 300mm

Connector

MC4 compatible


TEMPERATURE CHARACTERISTICS

NOCT(NominalOperatingCellTemperature)

45 ± 2℃

Temperature Coefficient of ISC

-0.35%/℃

Temperature Coefficient of Voc(β)

-0.27%/℃

Temperature Coefficient of Pmpp(γ)

0.050%/℃


Packaging

Pieces per pallet

31

Container

20'GP

Pieces per container

930

Container

40'GP

Pieces per container

1860
